SPECIFICATIONS

Brief Description:

• Night Vision: 30 m Range, Security in the Dark.
• High Resolution: Sharp Images with 4Mp and 2K.
• Easy Assembly: Ceiling Installation, Indoor/Outdoor.
• Flexible Storage: Supports Microsd up to 512 Gb.

Certification: CE

Specifications

/
• Performance
/
/

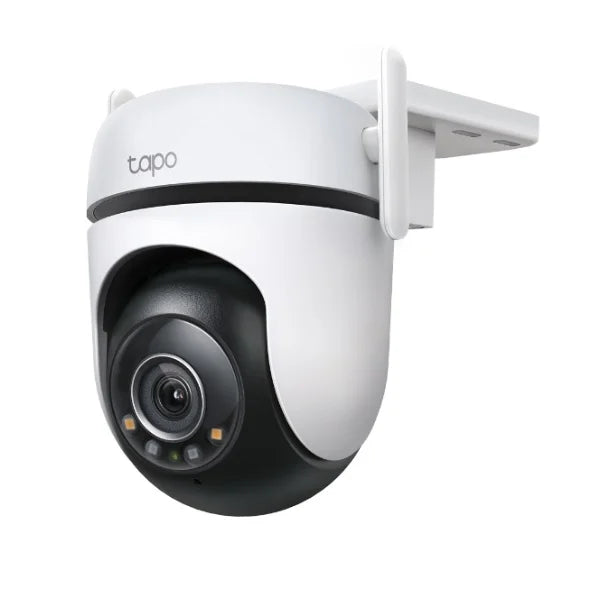

• Type: IP security camera
/
• Supported placement: Interior and exterior
/
• Connectivity technology: Wireless
/
• Self-tracking: Yes
/
• Certification: CE, FCC, RoHS, RCM
/
/

/
• Design
/
/
• Form Factor: Pad
/
• Mounting type: ceiling
/
• Product Color: black, white
/
• IP Code (International Protection): IP66
/
/

/
• Photographic camera
/
/
• Lens viewing angle, horizontal: 360 °
/
• Lens viewing angle, vertical: 130 °
/
/

/
• Image Sensor
/
/
• Number of sensors: 1
/
• Optical sensor size: 25,4 / 3mm (1/3 ")
/
• Sensor type: CMOS
/
/

/
• Lens System
/
/
• Number of lenses: 1
/
• Maximum opening: 1,61
/
• Fixed focal length: 3,18mm
/
/

/
• Night vision
/
/
• Night vision: Yes
/
• Night vision distance: 30 m
/
• LED type: IR
/
• Infrared wavelength: 850 nm
/
/

/
• Video
/
/
• Maximum resolution: 2560x1440 pixels
/
• Total megapixels: 4 MP
/
• Compatible video formats: H.264
/
• Supported graphics formats: 2560x1440
/
• Frame speed: 30 pps
/
/

/
• Audio
/
/
• Built-in speakers: Yes
/
• Built-in microphone: Si
/
/

/
• Connection
/
/
• Ethernet: No
/
• Network standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
/
• Supported network protocols: TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
/
• Wifi: Si
/
• Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
/
• Bluetooth: No
/
• Distance between channels: 2400 MHz
/
/

/
• Storage media
/
/
• Built-in HDD: No
/
• Integrated reading card: Si
/
• Compatible memory cards: MicroSD (TransFlash)
/
• Maximum memory card size: 512 GB
/
/

/
• Ports and Interfaces
/
/
• DC input plug: Si
/
/

/
• Security
/
/
• Supported security algorithms: 128-bit AES, WPA-PSK, WPA2-PSK
/
/

/
• Management features
/
/
• Restore button: Si
/
/

/
• Power Control
/
/
• Power supply: Alternating current
/
• AC input voltage: 100 - 240 V
/
• AC input frequency: 50 - 60Hz
/
• Energy consumption: 3,75 W
/
• Power consumption (max): 7,65 W
/
• DC output voltage: 9
/
• DC output amperage: 0,85 to
/
/

/
• Environmental conditions
/
/
• Operating temperature range: -30 - 60 °C
/
• Storage temperature range: -40 - 60 °C
/
• Relative humidity interval for operation: 10 - 90%
/
• Relative humidity interval during storage: 0 - 90%
/
/

/
• Weight and dimensions
/
/
• Width: 123,8mm
/
• Depth: 123mm
/
• Height: 90mm
/
/

/
• Packing contents
/
/
• Number of cameras: 1
/
• Mounting Kit: Si
/
• Mounting Brackets Included: Yes
/
• Screws included: Yes
/
• User Manual: Si
/
/
